APD Full Specifications

Back panel option #1: screw-down connectors:

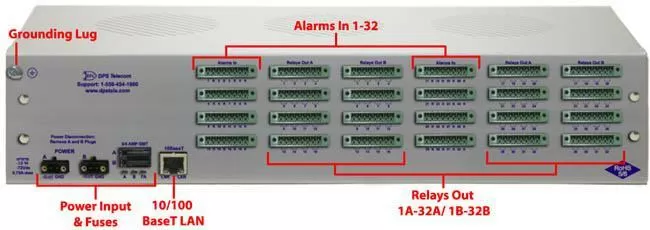

Alarm Point Duplicator Back Panel
Back panel option #2: 50-pin amphenol connectors:

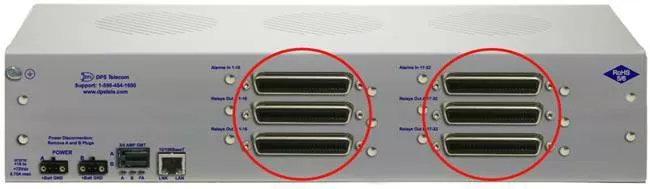

Alarm Point Duplicator Back Panel

The Alarm Point Duplicator is available with either screw-down connectors (shown on top) or 50-pin amphenol connectors (shown on bottom) for the discrete inputs and control relay outputs.

Full Specifications:

Protocols:

SNMPv1 and v2c, DCP, DCPf, DCPx, DCP1,HTTP, Telnet, ICMP
Discrete Inputs:

32 (opto-isolated)
Output Relays:

64
Maximum Voltage: 60 VDC/120 VAC
Maximum Current: 3 Amp AC/DC
Analog Inputs: 2 Power Feed analog channels
Analog Accuracy: +/- 1% of actual value
Power Input: Dual Feed -48VDC (-36 to -72 VDC)
(Optional) -24 VDC (-18 to -36 VDC)
(Optional) Wide Range -24/-48 VDC (-18 to -72 VDC)
(Optional) +24VDC (+18 to +36 VDC)
(Optional) 110 VAC wall transformer
(Optional) 220 VAC (UK) wall transformer
Interfaces:

1 RJ45 10/100 Ethernet port
1 DB9 Craft Port
24 8-pin screw plug for analogs, or...
(Optional) 6 50-pin Amphenol connectors for alarm inputs & relay outputs

Visual Interface: 35 front-panel LEDs
5 back-panel LEDs
Dimensions:

3.47" (1 RU) H x 17"W x 7.336"D
Mounting: 19" or 23" rack
Fuse: 0.75 amp GMT
Operating Temperature: 32 - 140 F (0 - 60 C)
Operating Humidity: 0%-95% noncondensing
RoHS: 5 of 6

Application Drawings

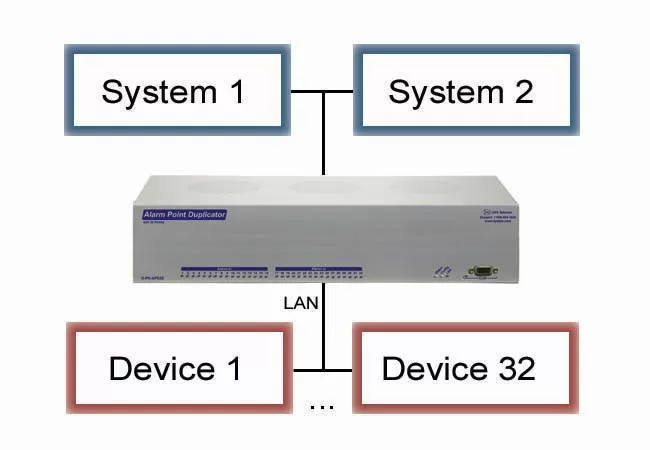

Alarm Point Duplicator application drawing
The Alarm Point Duplicator takes alarms from up to 32 devices and duplicates the alarms into two sets of 32 to be sent to separate alarm monitoring systems. This is useful if you have two existing monitoring systems that you need to support in parallel. You can send each alarm input into two systems using the two associated relays. The alarm is effectively duplicated.

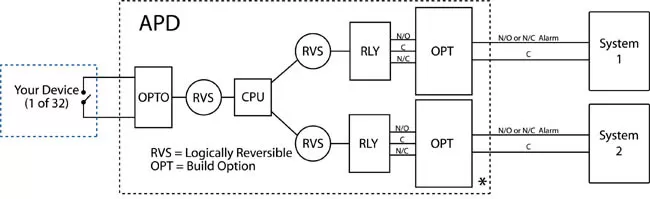

Alarm Point Duplicator application flow chart
Flow chart displaying the relay operation inside the Alarm Point Duplicator. Relays are set to NO, but can be configured (via software) to be NC.

Screenshots

The Alarm Point Duplicator includes an easy-to-navigate web interface that boasts several monitoring and control tools. Menus load very quickly, and alarm statuses update automatically without requiring a page refresh. Look below for screens of the new setup wizards that make it easy to configure notification schedules and manage alarms.

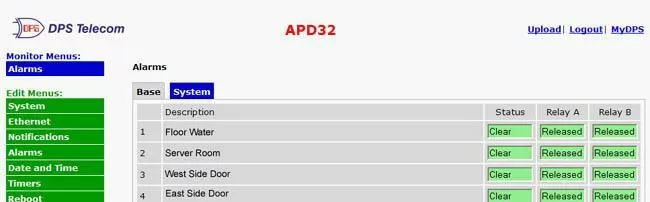

The Alarm Point Duplicator Monitor Alarms Screen
Duplicate 32 alarm points - The Alarm Point Duplicator can duplicate 32 alarm points into two identical groups of 32 alarms (64 alarm points total) to send to separate alarm systems.

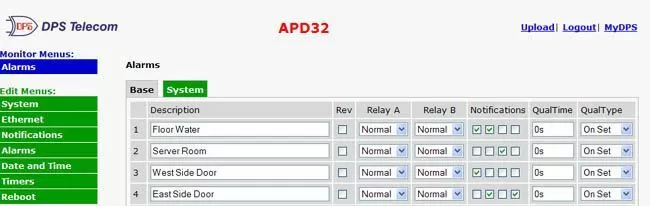

The Alarm Point Duplicator Edit Alarms Screen
Easy-to-Manage Alarms - Alarm points are easy to configure using the Alarm Point Duplicator's fast and intuitive web interface.

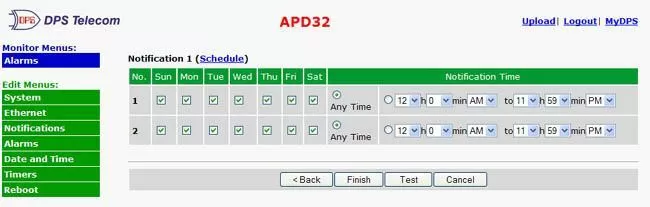

The Alarm Point Duplicator Notifications

Versatile Notification Configuration - Custom notification schedules allow you to control when you and your team receive notifications.
