NetMediator T2S: Bring Your TBOS Alarms Directly to Your SNMP Master

Ordering Option #1: Standard Smart Fuse Panel AB6.

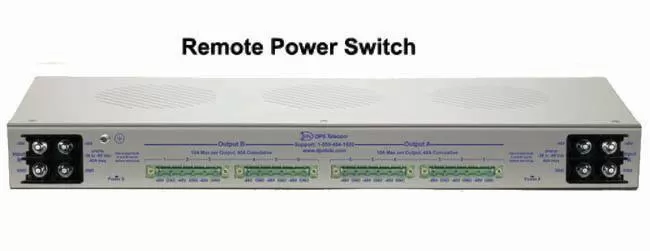

Standard Remote Power Switch (Smart Fuse Panel) AB6
The standard Smart Fuse Panel AB6 Option combines the functionality of a traditional fuse alarm distribution panel and a power distribution unit (PDU) into one convenient box.


Ordering Option #2: Smart Fuse Panel AB6 with Integrated Monitoring/RTU functionality.

Alarming Option Remote Power Switch (Smart Fuse Panel) AB6
The Optional Alarming Smart Fuse Panel AB6 provides all the functionality of the standard Smart Fuse Panel AB6 with an integrated RTU that gives you additional environmental monitoring.

The Alarming Options features:

  • Discrete alarm inputs: 16.
  • Control Relay Outputs: 2.
  • Analog inputs: 4.
  • Either + or - VDC environments.


Ordering Option #3: With D-Wire Option.

Smart Fuse Panel with D-wire
Features D-Wire input.

Full Specs

NetMediator-T2S Back Panel
The NetMediator-T2S can be used to collect legacy TBOS or TABS alarms using network bandwidth instead of expensive dedicated copper. The power of the Net Mediator is only limited by your imagination.
Full Specifications
Protocols: SNMP and TBOS
Discrete Inputs: 32
Analog Inputs: 8 (voltage/current)
Analog Input Range: -94 to 94 VDC or 4 to 20 mA
Control Outputs: 8
Max Voltage: 60 VDC/120 VAC
Max Current: 1 Amp, AC/DC
Interface: 4 RS-422/RS-485 TBOS ports
4 RS-232 serial reach-through ports
2 50-pin connectors
1 4-pin connector
1 RJ45 10BaseT Ethernet port
1 RJ11 POTS jack
1 DB9F craft port
Visual Interface: 18 LEDs, LCD display
Dimensions: 1.75"H x 17"W x 12"D (4.5 cm x 43.2 cm x 30.5 cm)
Weight: 4 lbs. 3 oz. (1.9 kg)
Mounting: 19" or 23" rack
Power Input: -48 VDC
Current Draw: 200 mA
Fuse: 0.75 Amp GMT
Operating Temperature: 32° to 140° F (0° - 60° C)
Operating Humidity: 0%-95% noncondensing
